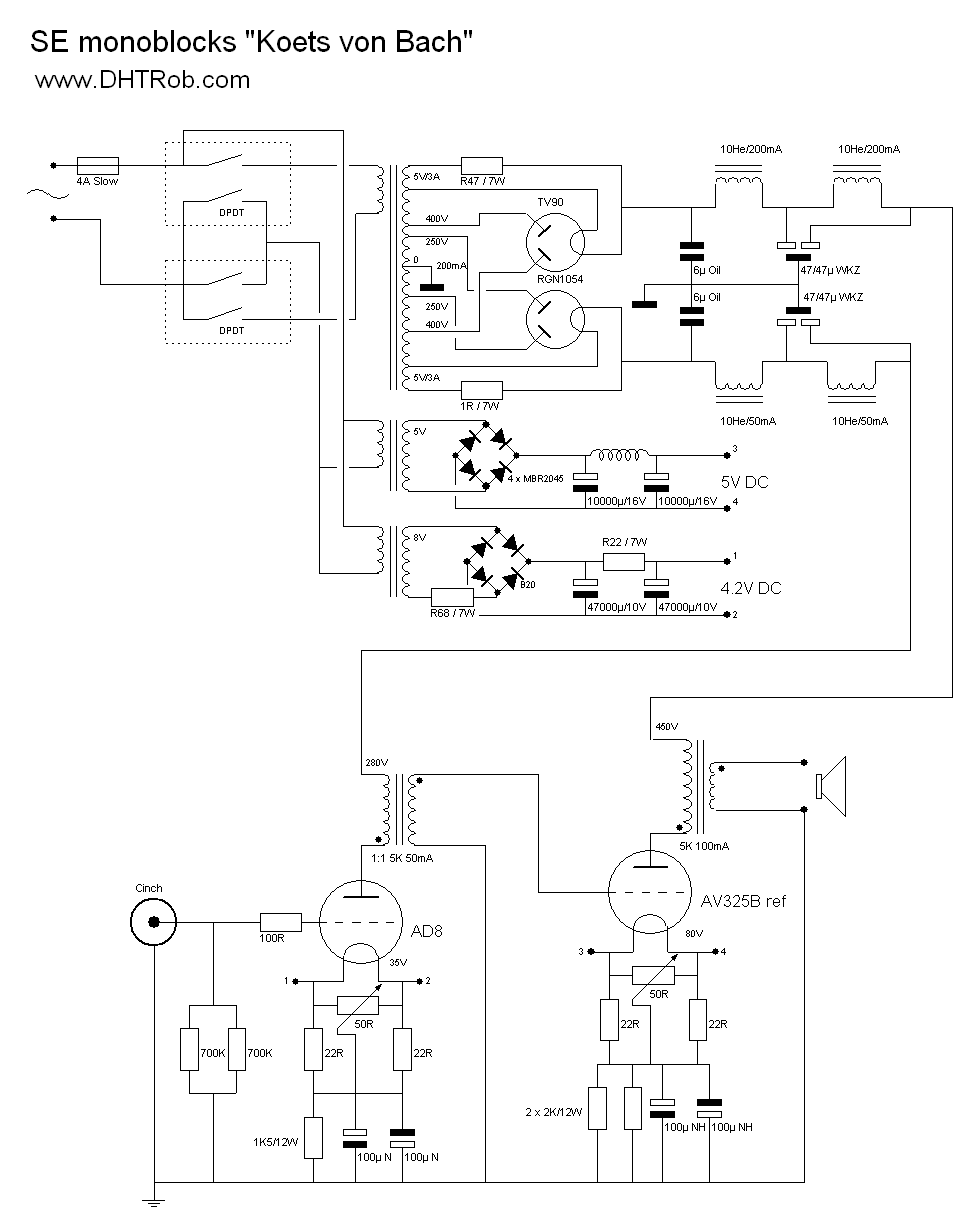

Single Ended monoblocks with AV325B ref powertube and interstage coupled AD8 driver. Dual power supply. So called "Koets von Bach" amplifier. |
|
Single Ended 2A3 or '45 amplifier with double 5Y3GT rectifier and 6SN7 as driver. |
|
"Power"-amplifier with
the 31 as driver. Very good sounding, not much power though.... |
|
A powerfull amplifier with the 807 in push-pull configuration and the ECC82 as driver/phase inverter. Diode rectified. |
|

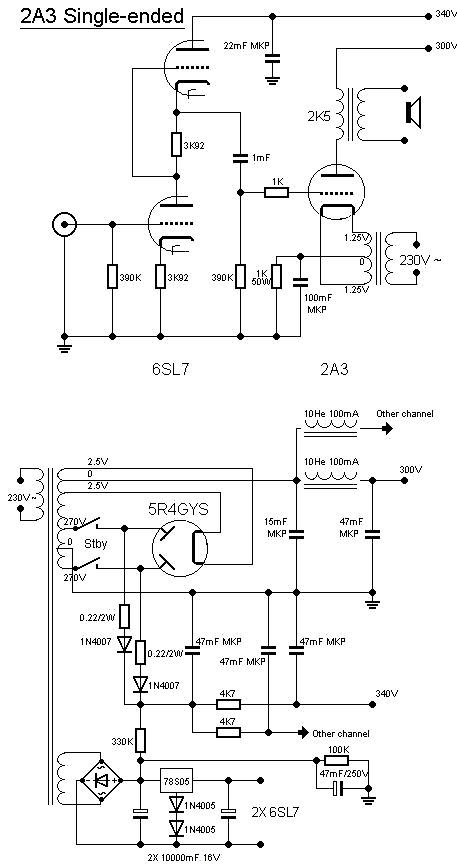

Nice single ended design, with a SRPP 6SL7 as driver, MKP's powersupply and tube-recitfied. Loads of tube sound for a small budget. |
|
Power amplifier featuring the 300B. Mu-stage driver (6SN7/6888). |
|

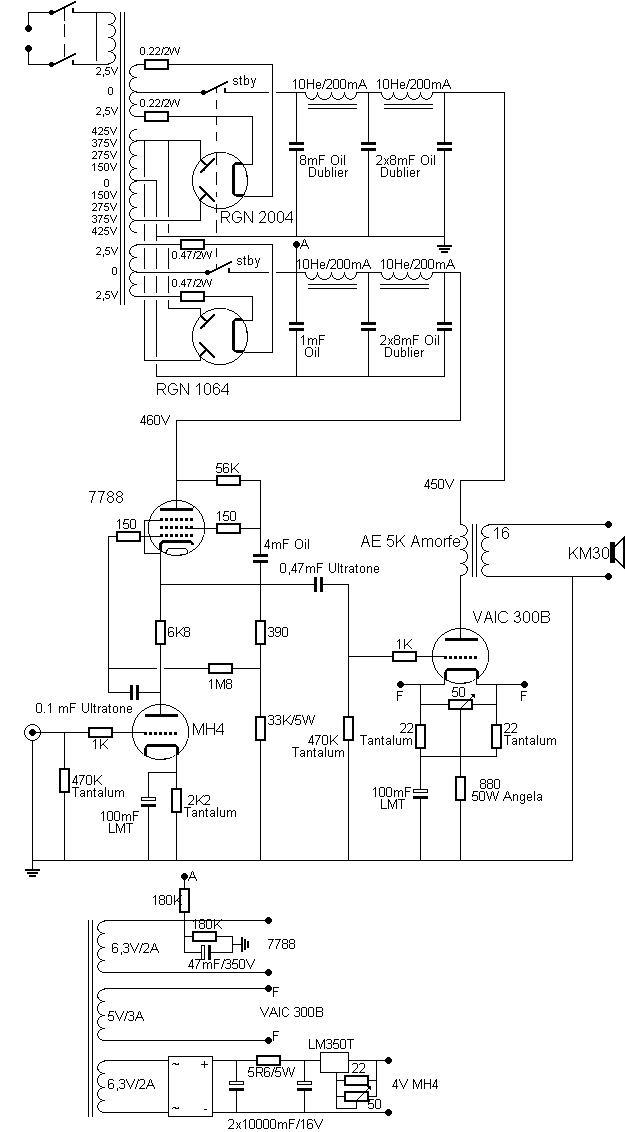

Same amplifier as previous one, now perfected with a separate power-supply for both the driver and 300B. Driver is the mu stage 7788(E810F)/British MH4. |
|
Hefty power amplifier featuring
two old tubes: 227 and 250! DC-coupled, supply rectified by two halfway
rectifiers with choke input. The 227 is chokeloaded and DC-coupled to the
250. |
|
Superbly sounding all DC-coupled design power amplifier. Featuring the 50 and ECC32 (ECC32 can be replaced by 6SN7..). |
|
Push-pull design 6AS7(6080). Driver/phaseinverter is ECC82, 12BH7 long-tail. Plates of the latter are inverted connected to the UL-taps of the OPT's. |
|

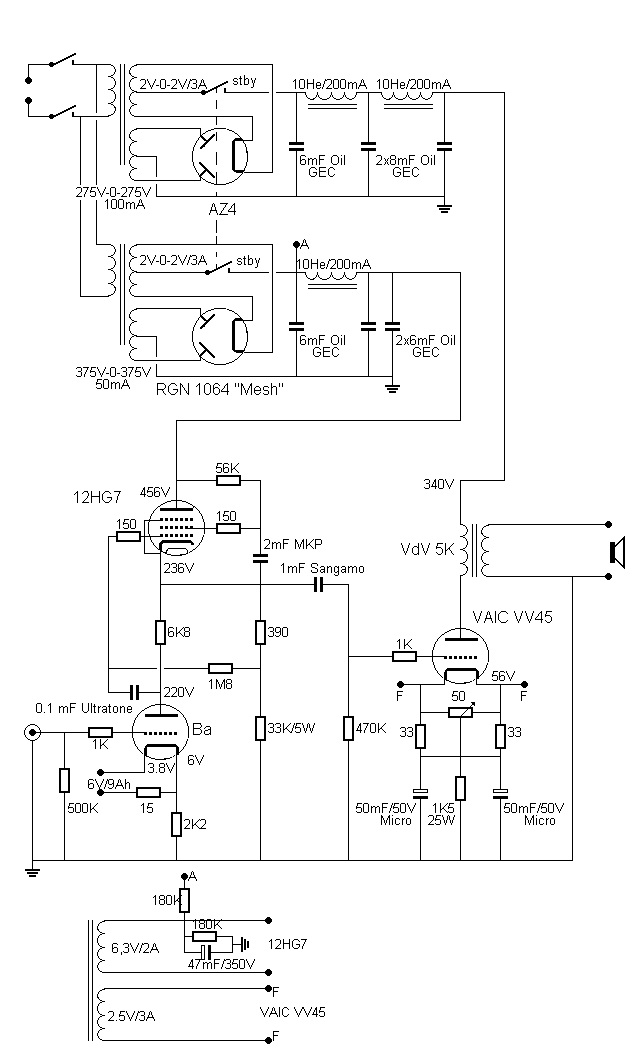

The VaicVV45 preceded by the Ba in a mu-stage 12HG7!!! |
|

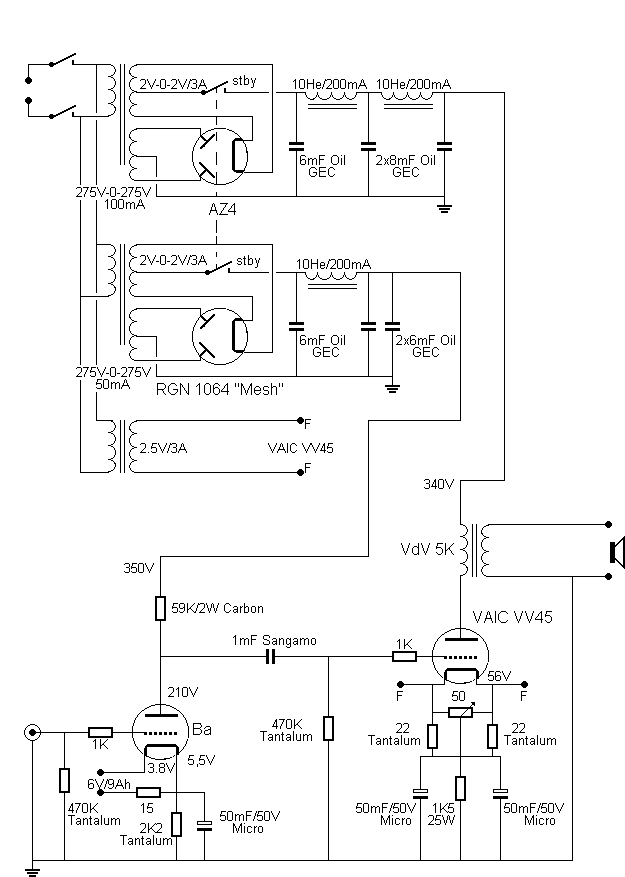

Same amp as previous one, only
simplified.No mu stage anymore for the Ba. |
|

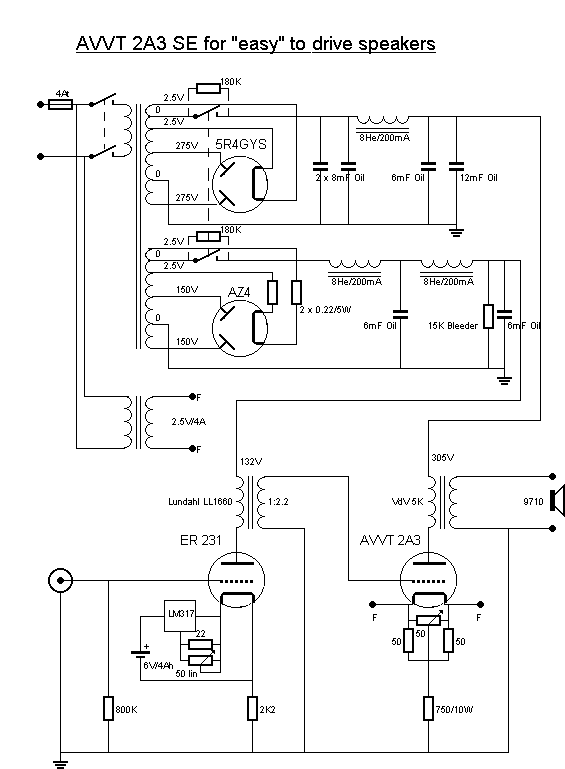

The Top? the ER231 is the driver, interstage (Lundahl 1660) connected to the AVVT 2A3. Both having their own power supply. |
|
A copy of Bruce M Bermans homebrew
preamplifier, with adjusted tube choice. 56 and 6J5 are direct coupled,
kathode output. Both supply and amplifier are on separate chassis. |
|
Pre amplifier with the 5687 using a line-out transformer. A real good one! |
|
A complete pre-amp with stabilised power supply using only 3 6SN7's? Take a look! |
|
Kick-ass preamp!If you don't have
to drive long cables (>50cm), this is the way to go. Choke loaded 227. |
|

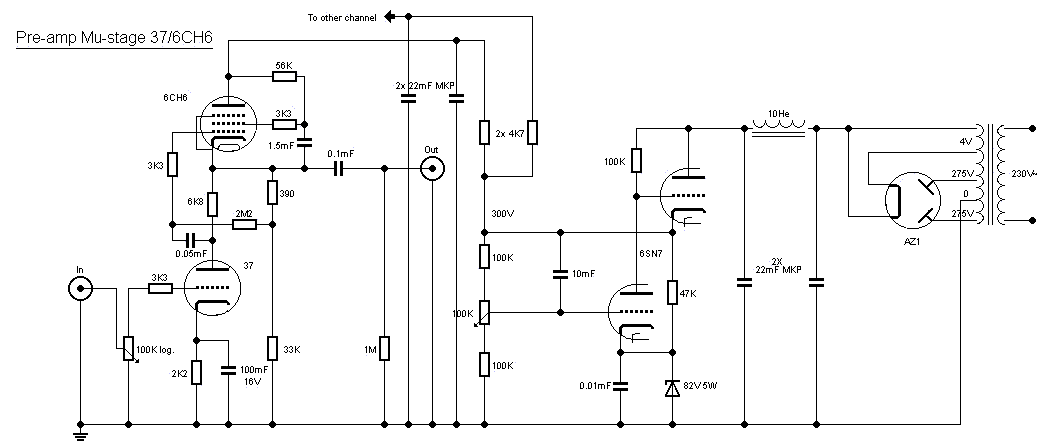

Need low-impedance? This 37 in
a mu stage 6CH6 and stabilised power supply does the trick. |
|
Guitar amplifier. One input, ECC82
iput, tone-control/defeat, ECC81 phase inverter and push-pull EL34. |
|
L'audiophile at the top: Put the
shielding of your interlinks at negative potential using a battery. |
|
Update your mains! Cost effective
way to improve your mains supply. You'll be astonished with the results! |
